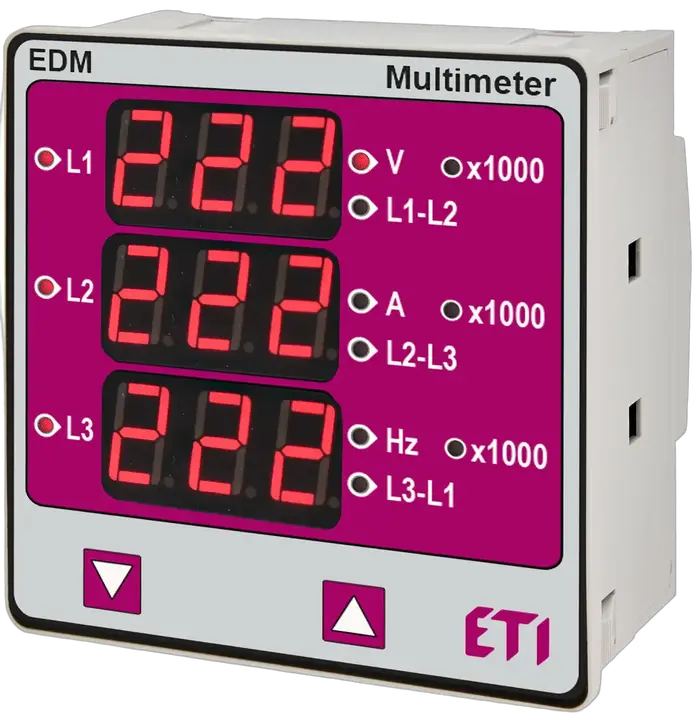

004805419
EDM El.meter
- ETI Code:
- 004805419
- Network system:
- 1F, 3F-3P, 3F-4P
- Measuring range:
- Phase voltage, line-to-line voltage, grid frequency, generator rotational speed, number of power interruptions
- Function:
- Measurement of electrical parameters
- Type description:
- Multimeter
- Communication interface:
- No
- Type of installation:
- Front mounting
- Application:
- Monitoring of electrical network parameters
2 Documents
15 Logistics
Product
- Net weight of the product
- 0.35 kg
- Net width
- 96 mm
- Net height
- 96 mm
- Net depth
- 55 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895441496
- Basic packaging weight
- 0.35 kg
- Basic packaging volume
- 1.14 dm³
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895441502
- Transport packaging weight
- 0.35 kg
- Transport packaging volume
- 1.14 dm³
- Pallet quantity
- 880 pcs
- Customs tariff
- 90303370
5 ETIM
- Number of voltage input channels
- 3
- Indication
- Digital
- Number of current input channels
- 3
- Voltage measuring range/AC direct(Min)
- 100 V
- Voltage measuring range/AC direct(Max)
- 500 V
ETIM Classification – Version 9.0
