Monitoring and control relays are crucial elements in modern electrical systems, responsible for ensuring safety, reliability, and efficient operation. These relays go beyond simple on/off switches, actively monitoring various electrical parameters, such as voltage, current, frequency, and level. They trigger pre-defined actions based on these monitored conditions, acting as intelligent intermediaries to protect equipment, prevent faults, and automate processes.

002470289

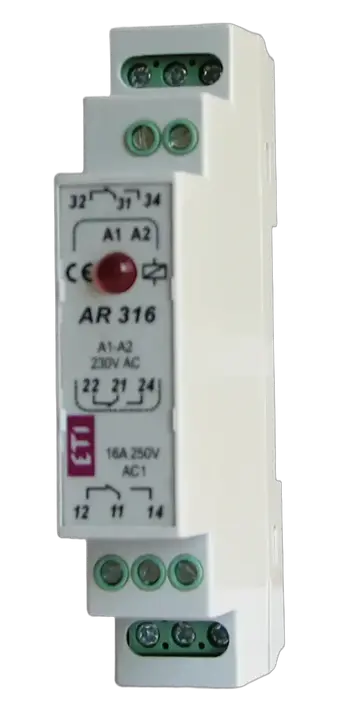

Image of AR316 230V AC

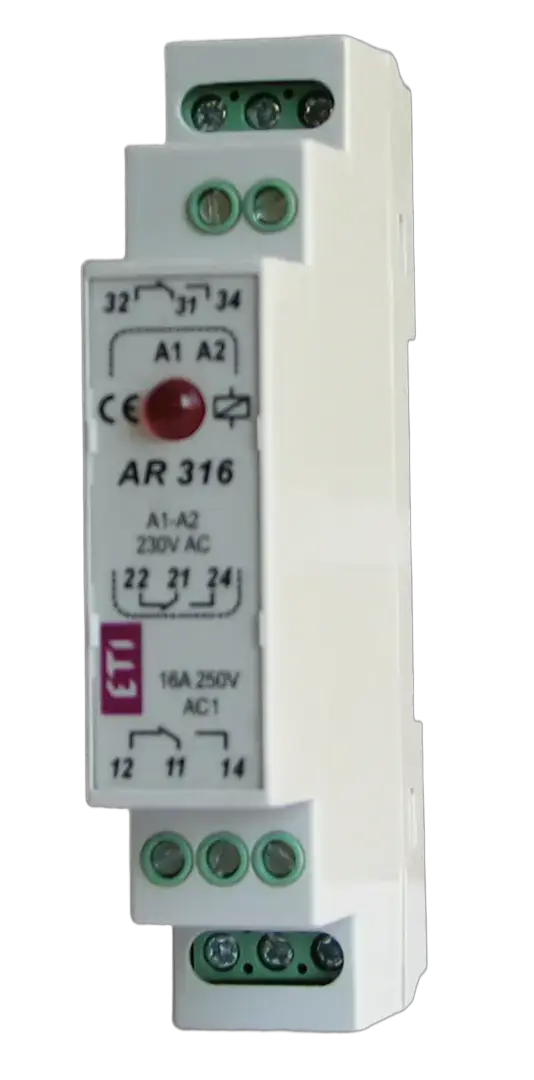

AR316 230V AC Power relay

ETI Code:: 002470289
Function:: Monitoring and Control relays
Application:: Zwiększenia liczby dostępnych styków pomocniczych urządzenia
Supply Voltage:: 230 V
Voltage type:: AC
Max Contact Current:: 16 A
Rated current:: 16 A
Maximum load capacity at AC1:: 4,000 VA
Type of Control:: Alarm and control
No. of CO contacts:: 3
No. of NC contacts:: 3
No. of NO contacts:: 3
IP rating:: IP20
Type of contacts:: 3xCO

Product

Net weight of the product: 0.1 kg
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895615163
Basic packaging weight: 0.1 kg
Basic packaging volume: 0.12 dm³

Transport Packaging

Transport packaging quantity: 10 pcs
EAN code for a transport packaging: 3838895615170
Transport packaging weight: 1 kg
Transport packaging volume: 1.4 dm³
Pallet quantity: 8,000 pcs
Customs tariff: 85364900

Degree of protection (IP): IP20
Voltage type for actuating: AC
Depth: 65 mm
Type of electric connection: Clip connection
Rated control supply voltage AC 50 Hz(Min): 230 V
Rated control supply voltage AC 50 Hz(Max): 230 V

ETIM Classification – Version 9.0
