Bistable switches, also known as latching relays, are a unique type of switch that maintain their state even when the power supply is disconnected. They have two stable states, typically "on" and "off," and remain in the last set state until a signal triggers a change. This characteristic differentiates bistable switches from standard relays, which revert to their default state upon power loss.

002471514

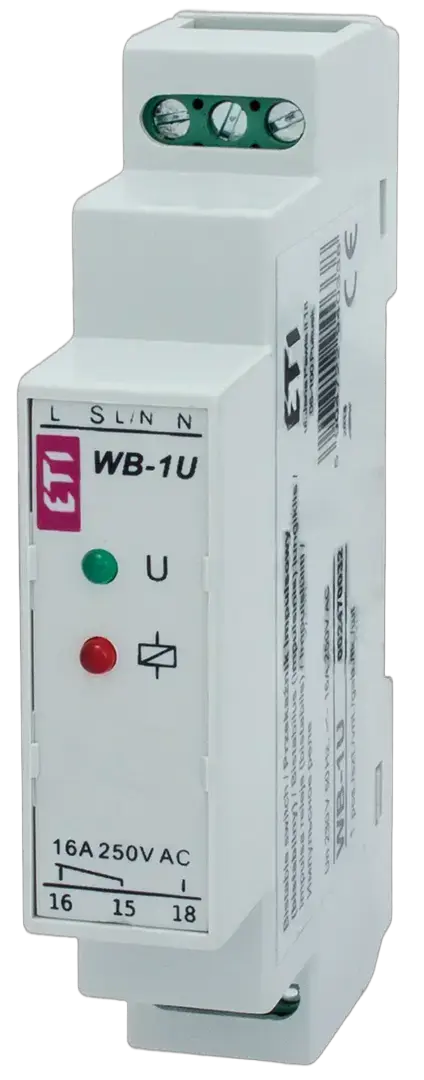

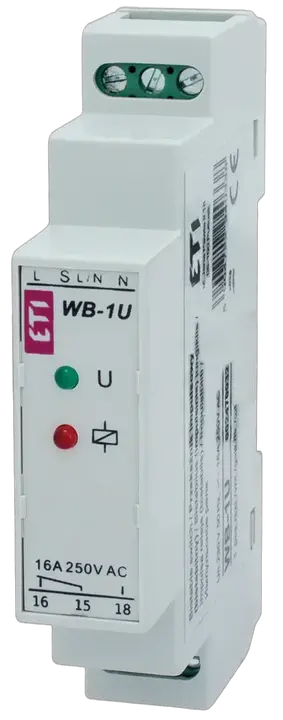

Image of WB-1UN

WB-1UN Memory relay

ETI Code:: 002471514
Function:: Wyłącznik bistabilny (przekaźnik impulsowy)
Supply Voltage:: 230 V
Rated operation current Ie at AC1:: 16 A
Rated Frequency:: 50 Hz
No. of CO contacts:: 1
No. of NC contacts:: 1
No. of NO contacts:: 1
Clamping cross-section:: 0.35-4 mm²
IP rating:: IP20
Working Temperature:: -25-40 °C
Voltage type:: AC
Type of Installation:: DIN rail, TH 35

Product

Net weight of the product: 0.067 kg
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895722175
Basic packaging weight: 0.067 kg
Basic packaging volume: 0.12 dm³

Transport Packaging

Intermediate packaging quantity: 10 pcs
EAN code for a intermediate packaging: 3838895722182
Intermediate packaging weight: 0.67 kg
Transport packaging quantity: 12 pcs
EAN code for a transport packaging: 3838895792369
Transport packaging weight: 0.7 kg
Transport packaging volume: 2.7 dm³
Pallet quantity: 4,800 pcs
Customs tariff: 85364900

Mounting method: DIN rail
Voltage type (supply voltage): AC
Type of excitation: Analogue with single function
Built-in height: 65 mm
Number of changeover switches: 1
Nominal switching current at 250 V AC: 16 A
Function: Passing break contact
Width in number of modular spacings: 1
Supply voltage(Min): 230 V
Supply voltage(Max): 230 V

ETIM Classification – Version 9.0
