New Metal distributors SOLID GSX with their modular design enable the assembly and wiring of the appliances in the workplace and high flexibility with superb protection and appearance.
Basic advantages:
- ETI protective devices are installed in cabinets up to 250A - Surface and flush mounting - Optional protection degree (up to IP44 maximum) up to max. 252 units of ETI modular appliances (max. height of locker 1200 mm) - CP overlay modular metal plates with earthing screw, - PM mounting brackets for circuit breakers, switches, fuse separators - Quick and easy installation, possibility of sealing assembly plates - The removable back panel makes it easier to wiring - The possibility of simple division of the housing (eg field aggregate / field of the network
-The ability to assemble and wiring the appliances on the workbench and subsequently insert into the housing - 160 mm cabinet depth provides enough room for wiring - Supplied mounting bracket and screws, - Different types of locks - Protection with high-quality polyester paint, resistant exposed to UV radiation - Type tests according to: EN 62208: 2011 - Standards: IEC / EN 62208, IEC / EN 60529, IEC / EN 62262 - A simple configuration with the GSX configurator application that lists the entire cabinet - custom cutouts on CP cover plates for various appliances (not just modular appliances)

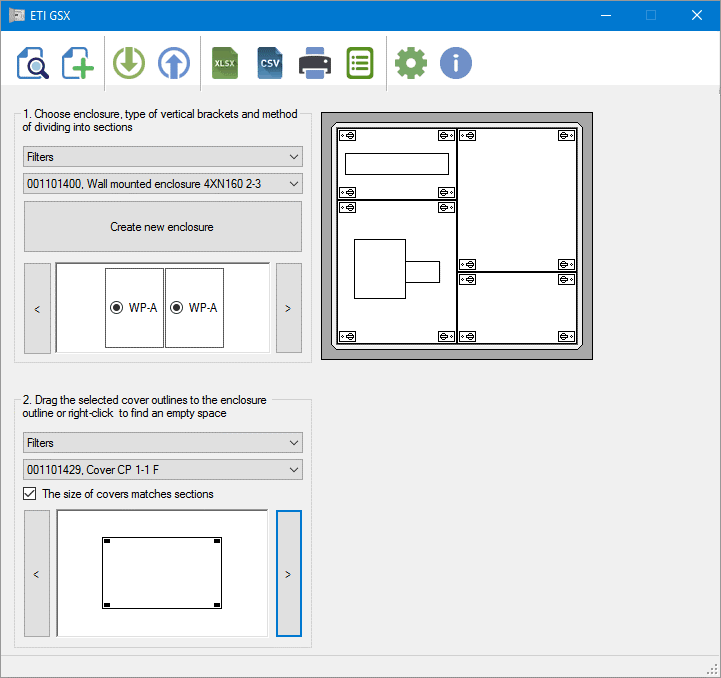

There is also a stand-alone GSX Configuration application that allows you to graphically compile all possible configurations by simply using a computer mouse and a graphic component allocation (drag & drop mode). The application is available for free on our website: http://www.etigroup.eu/support
Catalogue

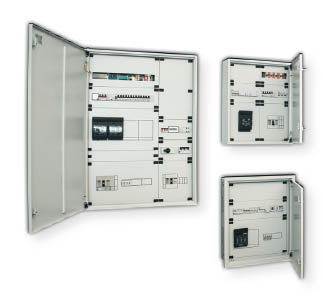

Here is the example of SOLID GSX enclosure system:
